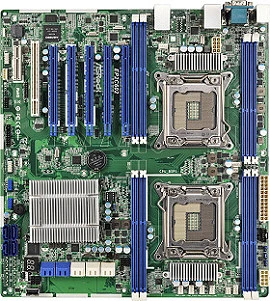

ASRock EP2C602

1. Dual Socket R (LGA2011), supports Intel^® Xeon 5-1600/2600/4600 & v2 series
2. Supports Quad Channel DDR3 1600 memory, 8 DIMM slots, Max. 128GB
3. 5 PCIe 3.0 x16 slots (PCIE3/PCIE6/PCIE7 : x16 mode, PCIE4/PCIE5: x8 mode)
4. 1 PCIe 3.0 x4, 1 PCI
5. ASPEED AST2300 graphics
6. 1 VGA : D-Sub
7. 2 SATA3 (6.0 Gb/s), 8 SATA2 (3.0 Gb/s) by Intel^® C602, Supports RAID 0, 1, 5, 10
8. 4 SATA3 (6.0 Gb/s) by Marvell SE9230, Supports RAID 0, 1, 10
9. 7 USB 2.0 (2 from rear I/O, 4 from onboard headers, 1 Type A port)
10. Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
11. 2 Intel^® 82574L LAN, Support PCIE Dual Gigabit LAN with Teaming function

檔案下載：EP2C602 Datasheet
